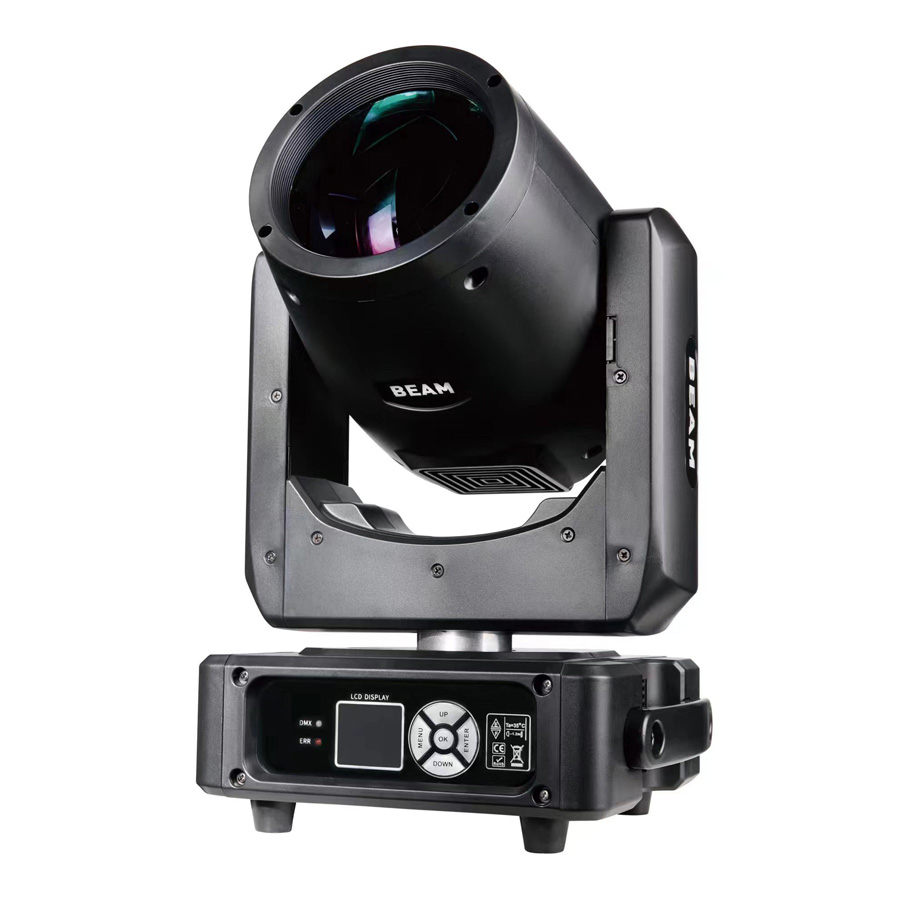

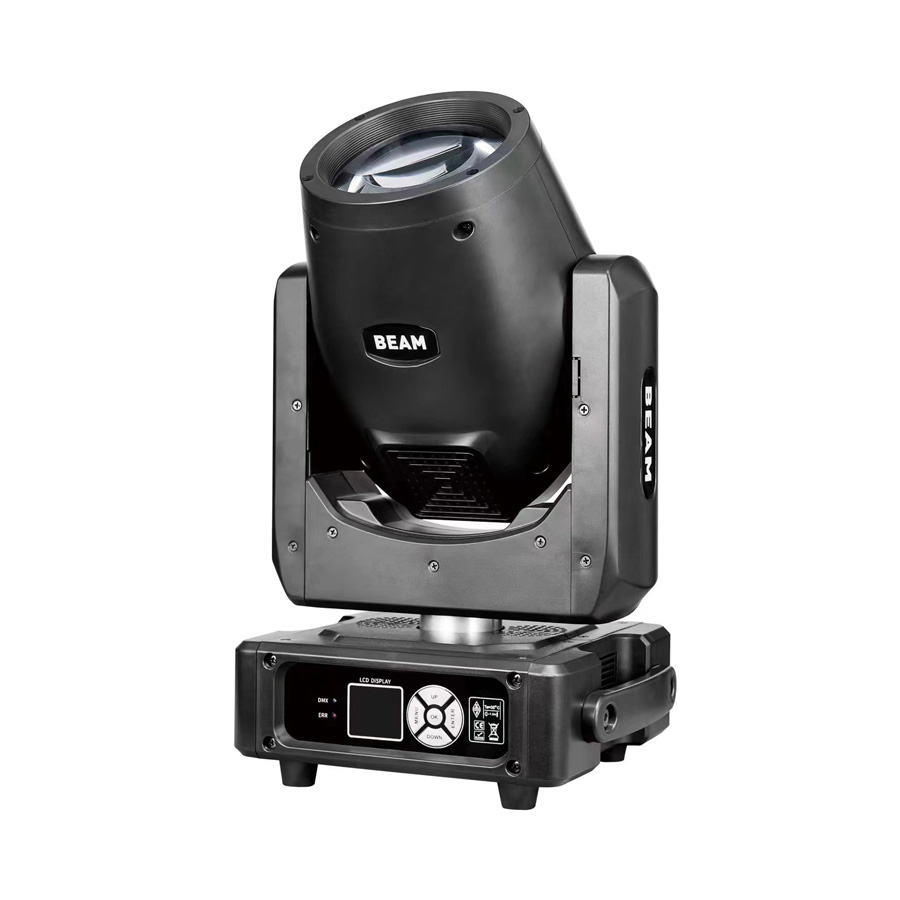

New Mini BEAM230 Sharpy Beam Moving Head Light

New Mini BEAM230 Sharpy Beam Moving Head Light

Technical Specification

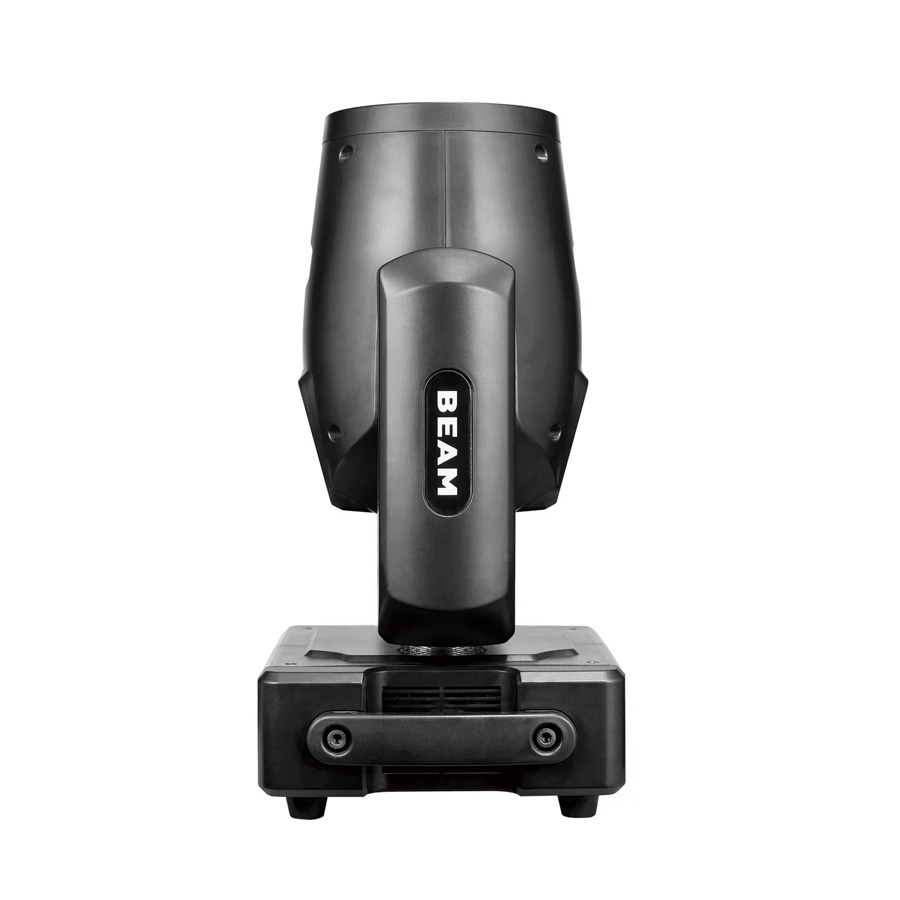

Product   Name: Mini BEAM230 Sharpy   Beam Moving Head Light

Model MINI BEAM230

Optical:

Light Source: Osram 230W 7R

Life   expectancy: Rated at 1,500 hrs

Light Number: 1 PCS

Lens optical system: Mechanical focus, beam angle 2.1°

Dynamic Effects:

Dimmer: Mechanical Linear dimming: 0 - 100%

Shutter/Strobe: Mechanical shutter,   Rate 0 to 10 Hz

Color   temperature correction: 6700K / 4500k / 3200k

Built-in   Automated Programs: Yes

Movement:

Pan scan：540°(16bit) Electric error   correction

Tilt scan：270° (16bit) Electric error   correction

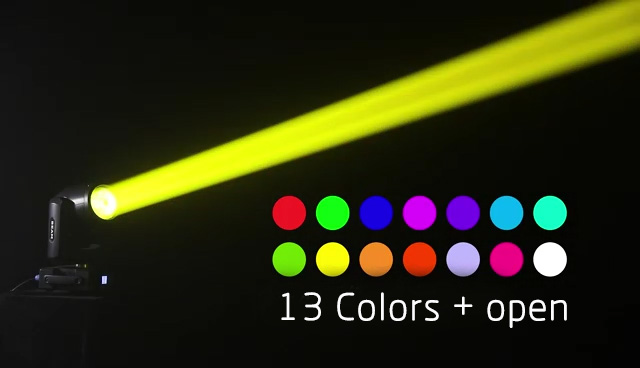

Color Wheel: 14 fixed colors +  Open ( Iris effect Availible)

1 colors-plate   (Colors effect)

Static Gobo: 17 gobos + Open

Frost: 1 independent   atomization effect, delivers soft and natural light spot

Prism: 8+16 or 8+24 Prism system (Double prism can be superimposed, can be rotated, zoom)

Electrical:

Power Draw Total: 300 W

Multi-voltage   operation: AC 100-240V,   50/60Hz

Power Daisy   chain: Yes, 4 units @120V, 8 units @230V

Cooling Fan: Intelligent speed   regulation and low noise fans cooling system, overheating protection

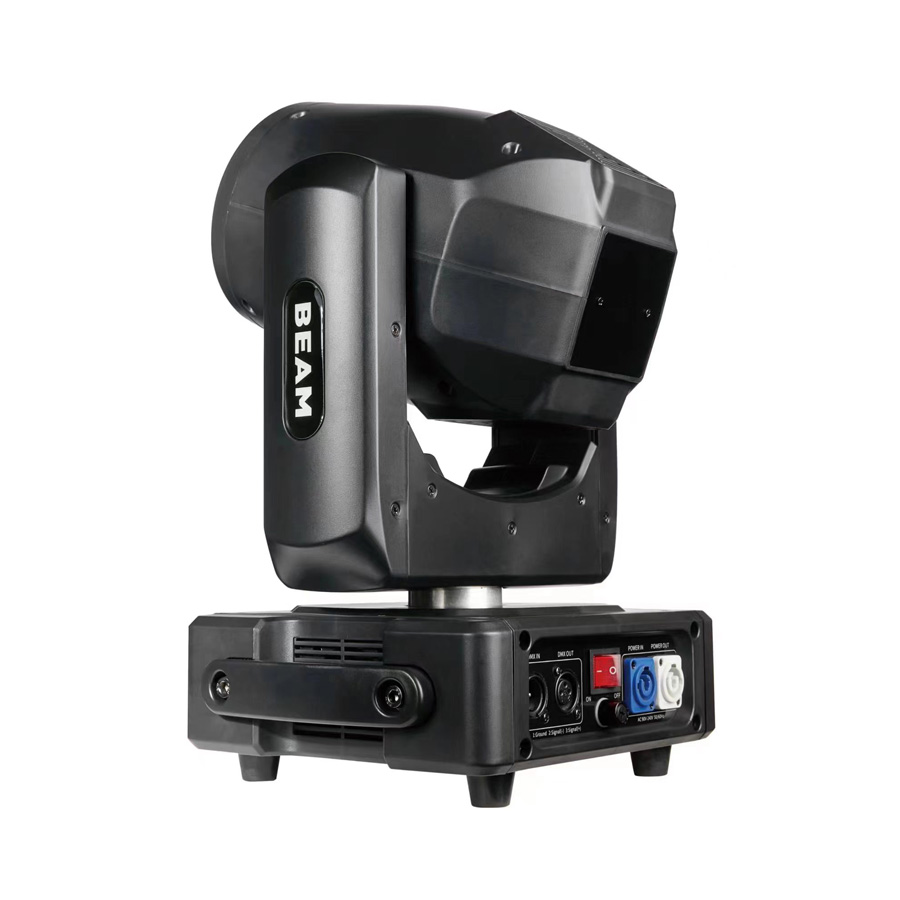

Connection:

DMX:  3-Pin XLR In/Out

Power: PowerCON   Input / output

Control:

Control protocol:  DMX-512

DMX Channels: 18 channels

Stand Alone: Built-in Auto   Programs, Master/Slave, Sound Actived

Control Panel Display: LC Display   (user-friend readable)

RDM: Ready

Construction / Physical:

Housing: Matel and ABS plastic, Black color

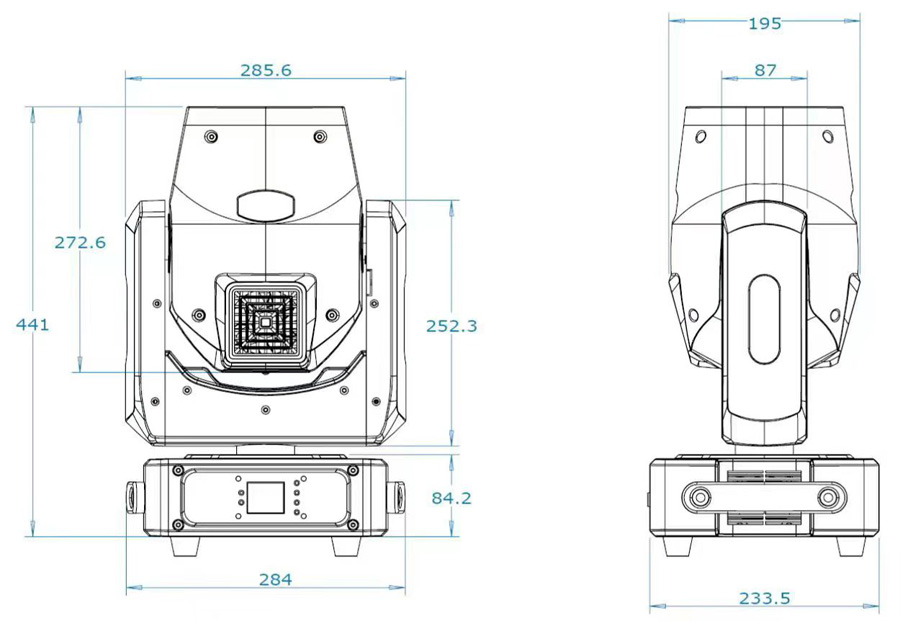

Dimensions  (LxWxH): 284 x 233 x 440mm

Weight: 10.8 kg

Certifications   / Qualifications:

Certifications: CE, LVD, EMC, Rohs

IP Rating IP20

Features:

Strong Sharpy Beam effect

Colorful prism   rotating effect

Light weight, easy for transportation or   installation
