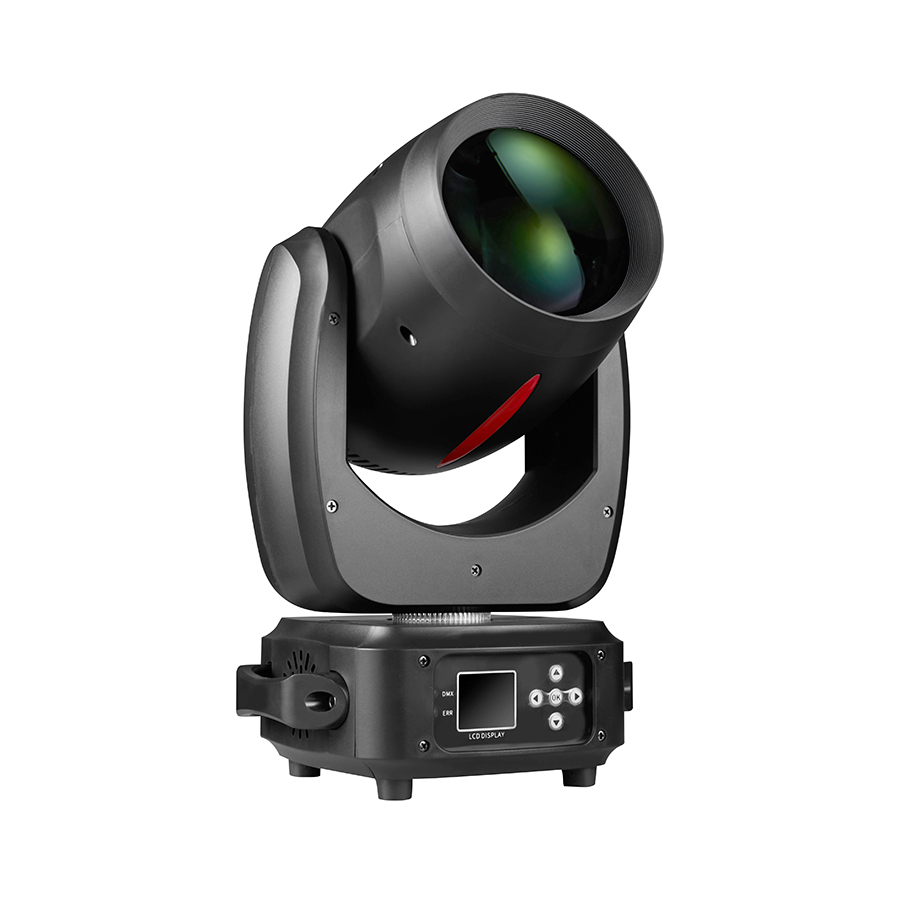

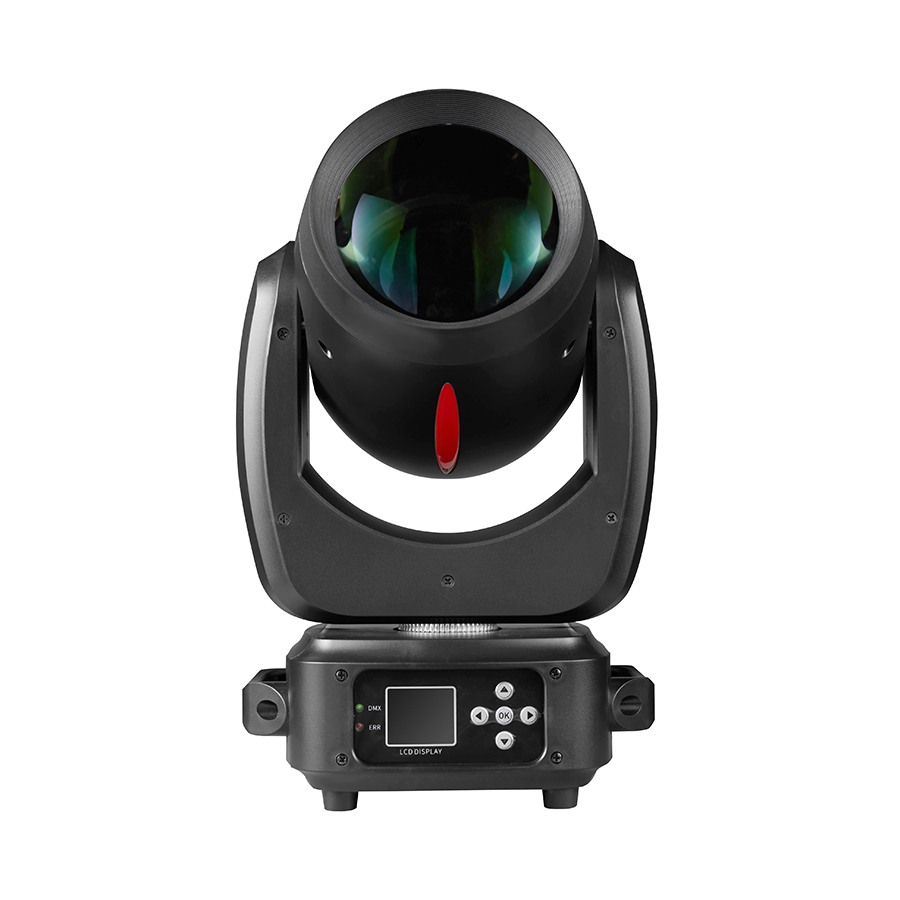

New Mini 180W LED Sharpy Beam Moving Head Light

New Mini 180W LED Sharpy Beam Moving Head Light

Technical Specification

Product   Name: New Mini 180W LED Sharpy Beam Moving Head Light

Model: BEAM180DF-LED MINI



Optical:

Light Source: 150W High brightness White LED

Life   expectancy: Rated at 50,000 hrs

Light Number: 1 PCS

Lens optical system: Mechanical focus, beam angle  3°

PWM frequency: 20,000 Hz



Dynamic Effects:

Dimmer Modes: Linear Dimming

Flicker Free: Yes, Good for HD Vedio, Camera, TV studio, Theatre, Stage … and so on

Shutter/Strobe: Electronic, Rate 0 to 25 Hz

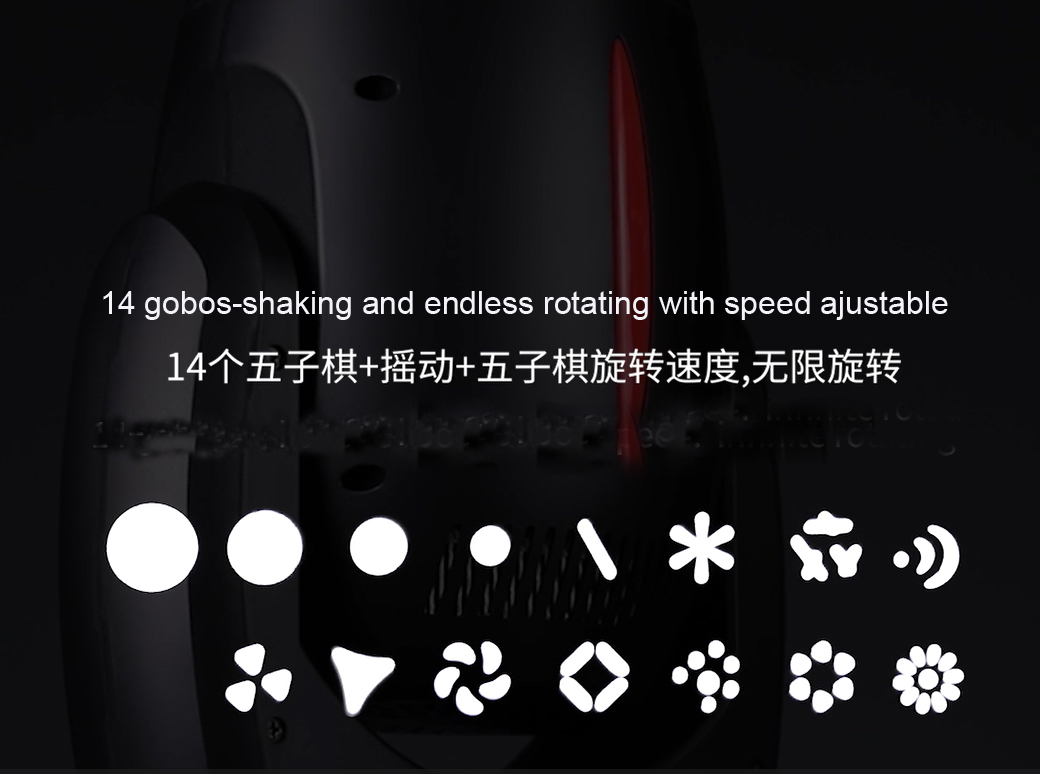

Gobo wheel: 14 gobo, gobo rotatable, shaking function

Color wheel: 11 colors + white

Fog soft light wheel

Prism: 18-face Prism

Colorful wheel effect

Built-in Automated Programs: Yes



Movement:

Pan scan：540°(16bit) Electric error   correction

Tilt scan：270° (16bit) Electric error   correction

Color Wheel: 11 fixed colors +  Open

Gobo Wheel: 14 gobos + Open, rotatable, shaking function

Frost avaible, delivers soft and natural light spot

Prism: 18-faced Prism system

Focus



Electrical:

Power Draw Total: 180 W

Multi-voltage   operation: AC 100-240V,   50/60Hz

Power Daisy   chain: Nil

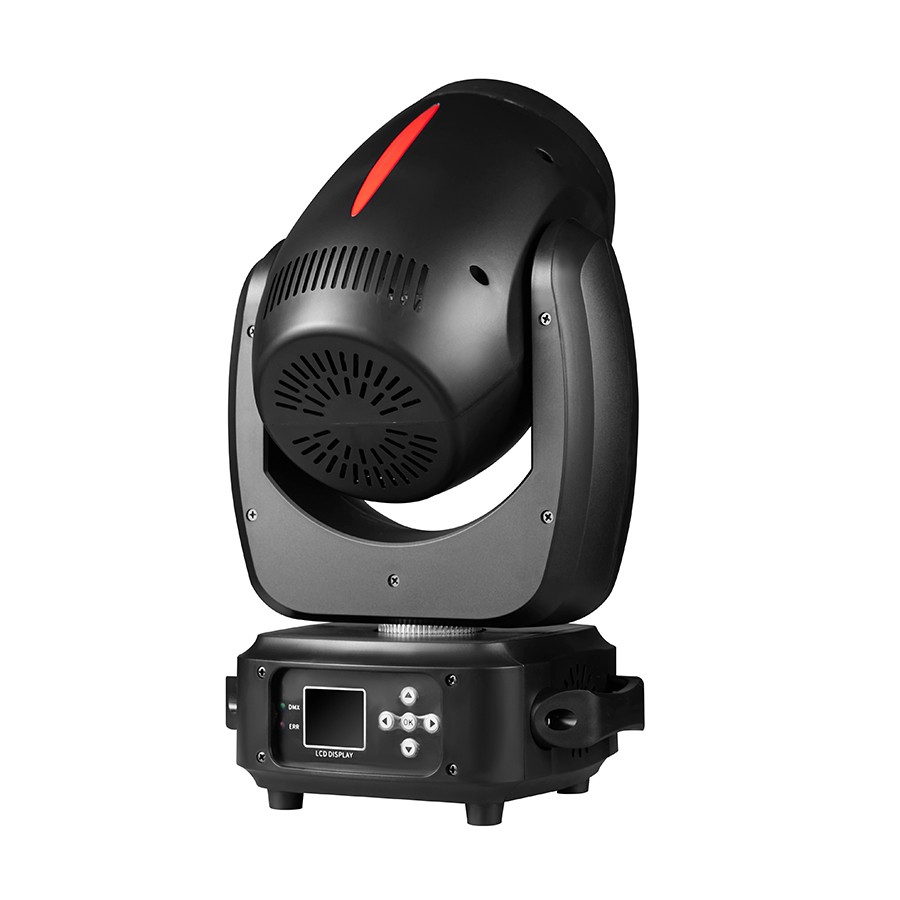

Cooling Fan: Intelligent speed   regulation and low noise fans cooling system, overheating protection



Connection:

DMX:  3-Pin XLR In/Out

Power: PowerCON   Input



Control:

Control protocol:  DMX-512

DMX Channels: 14 channels

Stand Alone: Built-in Auto   Programs, Master/Slave, Sound Actived

Control Panel Display: LC Display   (user-friend readable)

RDM: NIL



Construction / Physical:

Housing: Matel and ABS plastic, Black color / White color optional

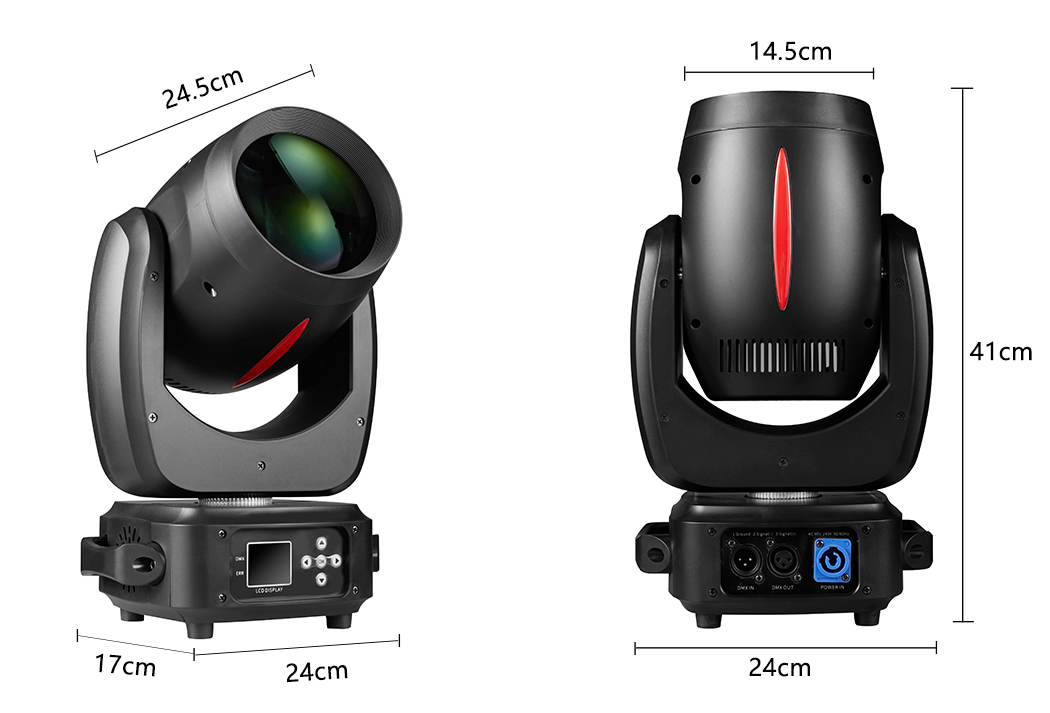

Dimensions  (LxWxH): 245x170x410 mm

Weight: 6.66 kg



Certifications   / Qualifications:

Certifications: CE, LVD, EMC, Rohs

IP Rating IP20



Features:

Strong Sharpy Beam effect

LED light source, no need change the bulb

Colorful prism   rotating effect

Light weight, easy for transportation or   installation
