Fresnel60 VW LED

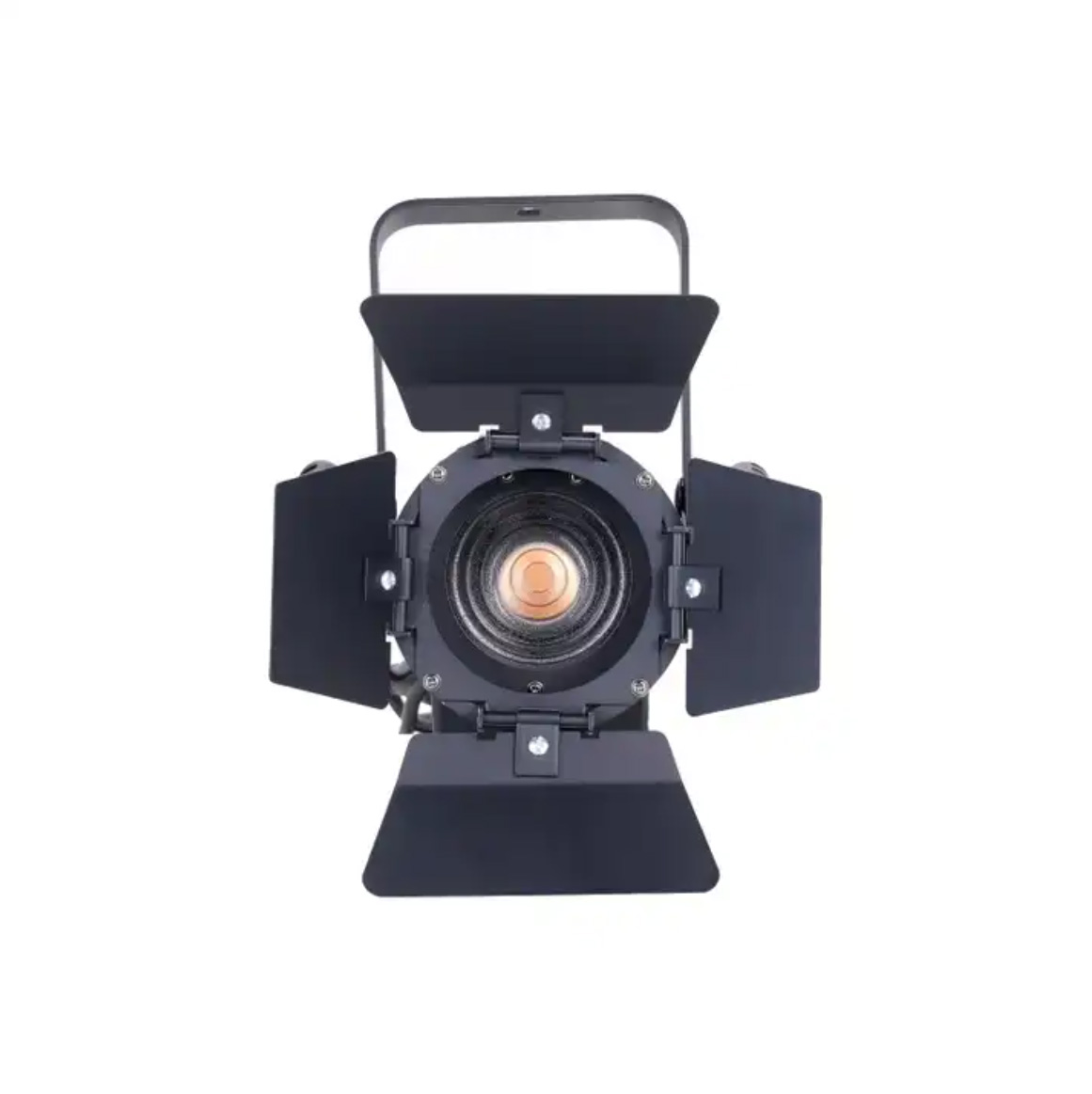

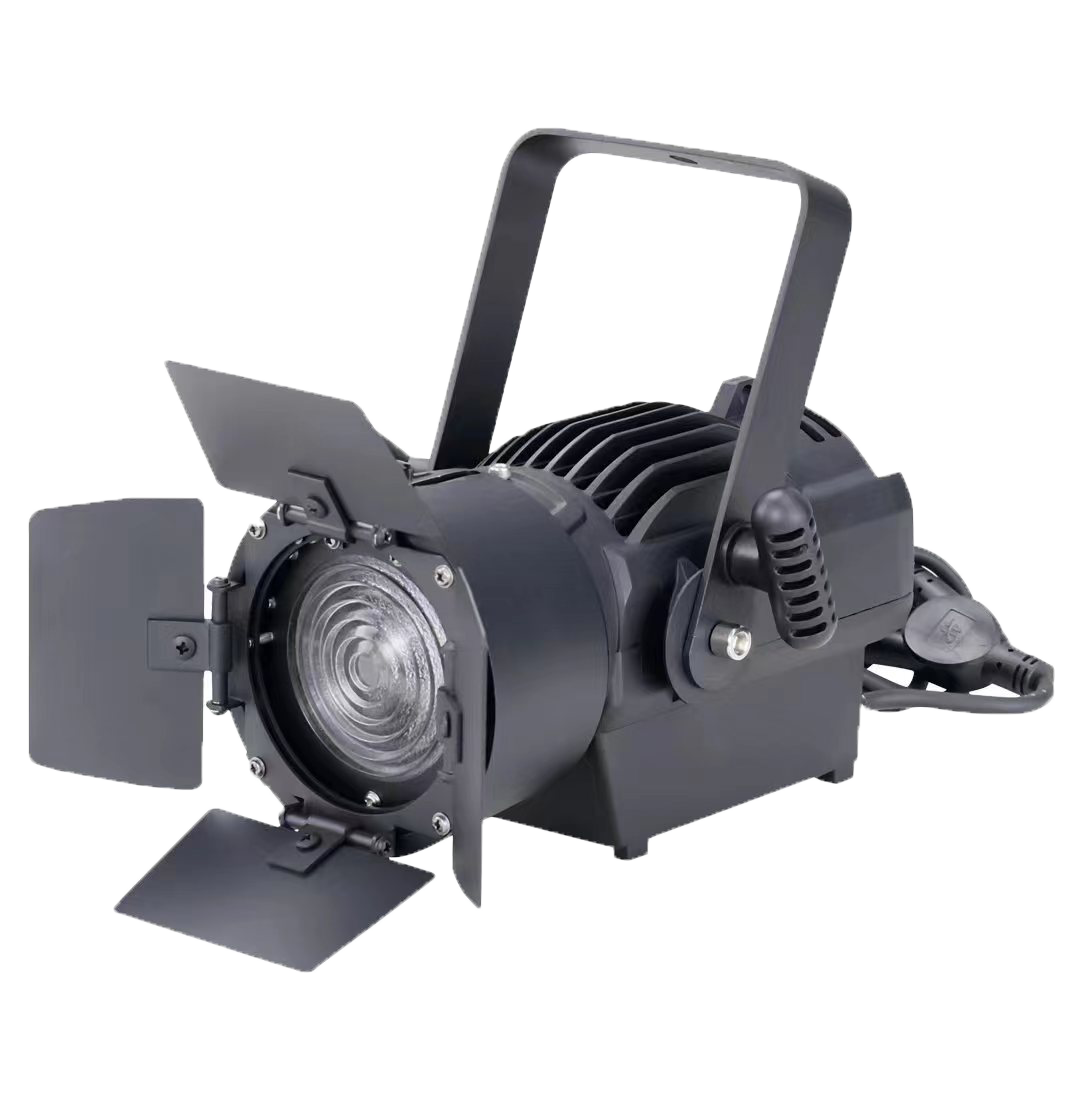

Product Name: 60W LED Mini Fresnel Spot Theatre Light
Technical Specification
Optical
Light Source: 60W Cool White and Warm White 2-in-1 LED
Life expectancy: Rated at 50,000 hrs.
Light Number:1 PCS
Lens: Pro Glass Fresnel
Beam angle: 15 - 35 degree Zoom (By manul)
CT: 3200 K - 5600K adjustable by control panel or DMX controller
CRI: > 95
PWM frequency: 20,000 Hz
Dynamic Effects:
Dimmer:Electronic Dimming: 0 - 100%
Dimmer Modes:Linear Dimming
Flicker Free:Yes, Good for HD Vedio, Camera, TV studio,Theatre, Stage … and so on
Shutter/Strobe: Electronic, Rate 0 to 20 Hz
Standalone Color Mixing:Yes
Built-in Automated Programs: Yes
Electrical
Power Draw Total: 80W Max (All LED's @ Full On)
Multi-voltage operation:AC 100-240V, 50/60Hz
Power Daisy chain: 8 fixtures (120V); 16 fixtures (230V)
Cooling: Silent, No fan. Air convetion cooling with smart thermal sensor
Connection:
DMX: 3-Pin XLR In/Out (5-pin for option)
Power: Power Cord with In/Out connectors (linking connetors)
Control
Control protocol: DMX-512
DMX Channels: 3/10 channels
Stand Alone: Auto, Master/Slave

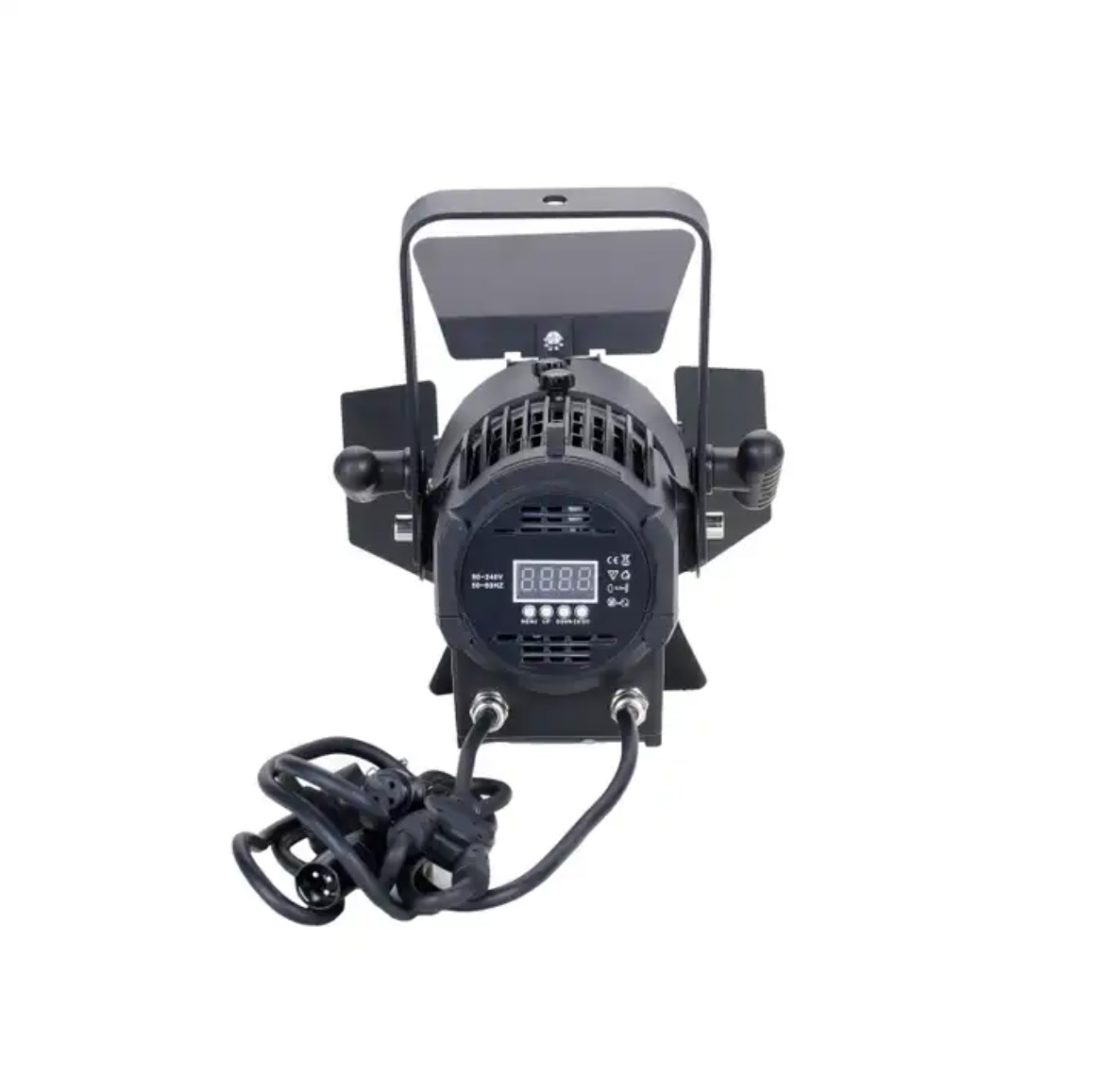

Control Panel Display: LED Display
RDM:Yes
Construction / Physical:
Housing: Aluminum, Black
Dimensions (LxWxH): 310x 179 x 130 mm
Weight: 3 kg.
IP Rating: IP20
]
