Fresnel300 LED-VW

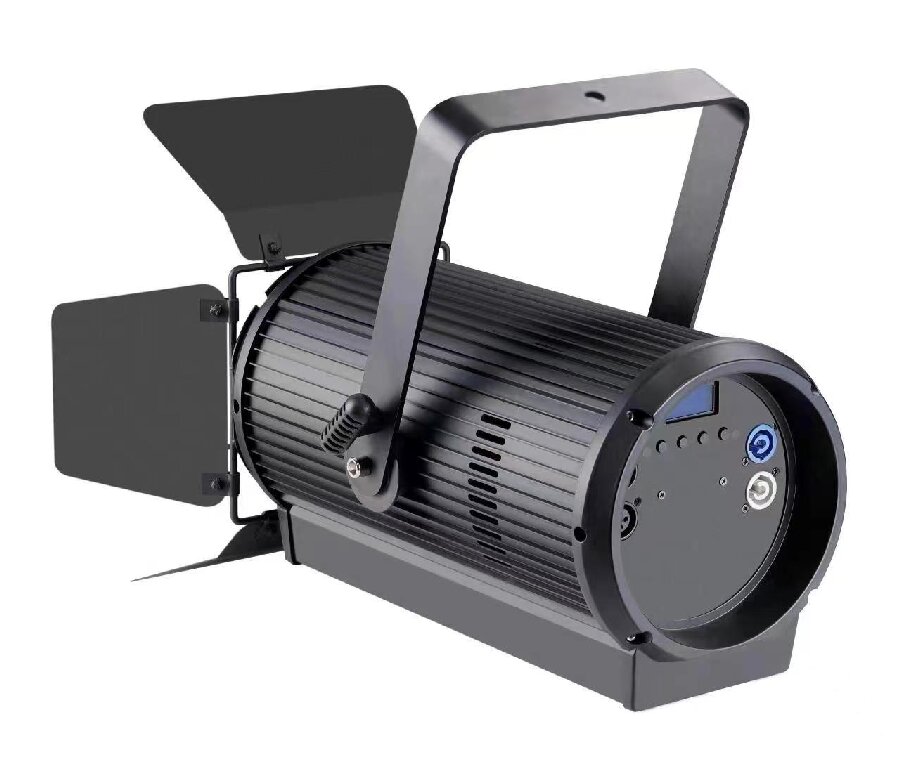

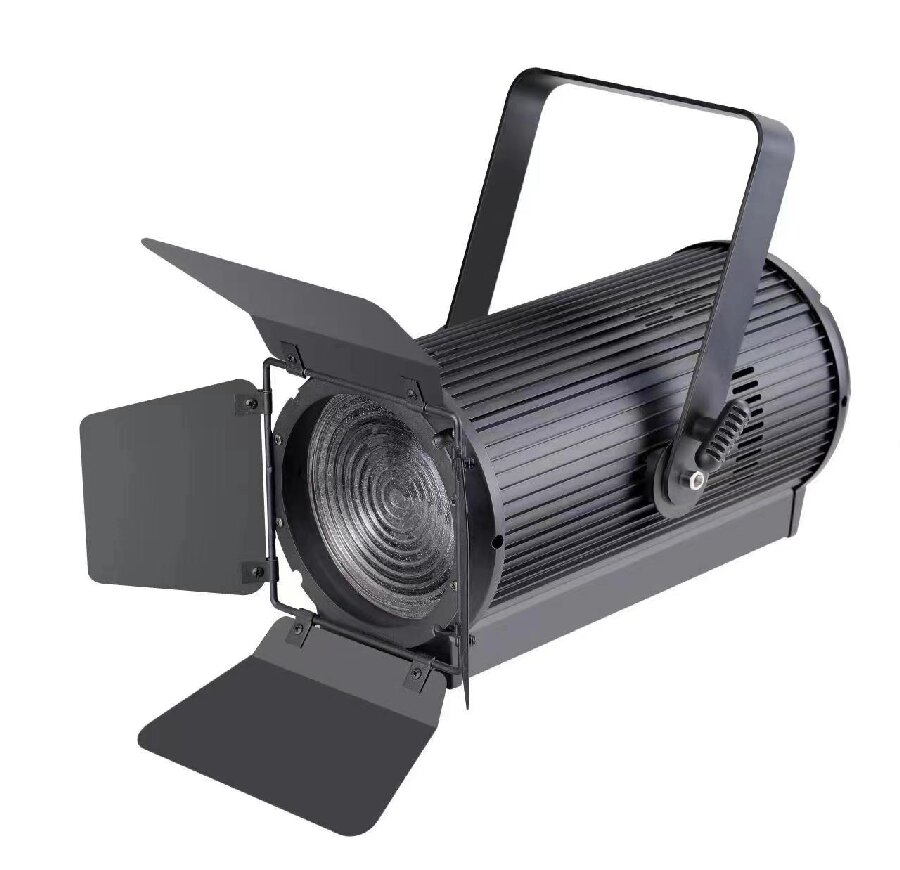

Product Name: Fresnel Light with 300W LED Warm+Cool White
Technical Specification
Optical
Light Source: 300W Warm+Cool White 2-in-1 LED
Life expectancy: Rated at 50,000 hrs.
Light Number:1 PCS
Lens: Pro Glass Fresnel
Beam angle: 15 - 60 degree Zoom (By manul)
CT: 3200 K ~ 5600K adjustable by control panel or DMX controller
CRI: > 92
PWM frequency: 30,000 Hz
Dynamic Effects:
Dimmer:Electronic Dimming: 0 - 100%
Dimmer Modes:Linear Dimming
Flicker Free:Yes, Good for HD Vedio, Camera, TV studio,Theatre, Stage … and so on
Shutter/Strobe: Electronic, Rate 0 to 20 Hz
Standalone Color Mixing:Yes
Built-in Automated Programs: Yes
Electrical
Power Draw Total: 350W Max (All LED's @ Full On)
Multi-voltage operation: AC 100-240V, 50/60Hz
Power Daisy chain: 4 fixtures (120V); 8 fixtures (230V)
Cooling: Noiseless fans. Smart cooling with thermal sensor
Connection
DMX: 3-Pin XLR In/Out (5-pin for option)
Power:PowerCON In/Out (linking connetors)
Control
Control protocol: DMX-512
DMX Channels: 3/10 channels
Stand Alone: Auto, Master/Slave
Control Panel Display: LC Display (user-friend readable)
RDM:Yes
Construction / Physical:
Housing: Aluminum, Black
Dimensions (LxWxH): 452 x 287 x 224 mm
Weight: 7.5 kg.
IP Rating: IP20
