Mini Slim IP65 Outdoor Waterproof DMX LCD Display with Touch Button LED Par Light
OEM/ODM welcome, your brand name logo allow to print on the units and packing even small order
A new IP65 outdoor par lighting fixture - TruePAR Hex6-IPT
The TruePAR Hex6-IPT equipped with 6 RGBWA+UV 6 in 1 extra bright LEDs, Seetronic Powercon True1 in and out connectors and the Seetronic IP65 XLR coonectors, LC Display with 4 touch buttons for control panel.
The custom made die-cast aluminum housing has very good heatsink function, compact size, and lightweight only 3.2 kg.
The special designed stand bracket, make the device can be handing or sit on the floor for projecting an object at any angle.
IP65 design is suitable for outdoor work environment.
And the extra high LED refresh rate (up to 25K Hz), 100% licker free, very suitable for use on very professional camera, video, movie, TV studio and so on.
Special channels HSV and HSI provided more professional colors mixing mothod.
The TruePAR Hex6-IPT, using 6 pcs 12W RGBWA+UV 6-in-1 LED, combines powerful output and colorful wash into its slim body. The par is featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & switching, to create psychedelic effect. Very suitable for bars, ball rooms, night clubs, TV studio, Threatre and other entertainment applications.
IP65 Waterproof desiged for outdoor using.
And the extra high LED refresh rate (up to 25K Hz), 100% licker free, very suitable for use on very professional camera, video, movie, TV studio and so on.
FEATURES:
Aluminum diecast housing, Slim, lightweight for easy installation and transportation
Great for quiet performance, silent operation, no moving parts inside.
Flicker free, suitable for use on camera, video, movie, TV studio and so on
Built-in non-linear dimming modes offers super-smooth LED fading
Great eye-catching built-in auto programs.
Built-in auto programs triggered via master/slave or DMX controller
Color macro and white balance modes
Stand-alone versatility provided by plenty of custom configurable settings.
Thermal sensor system provides double protection for LEDs
Key lock function

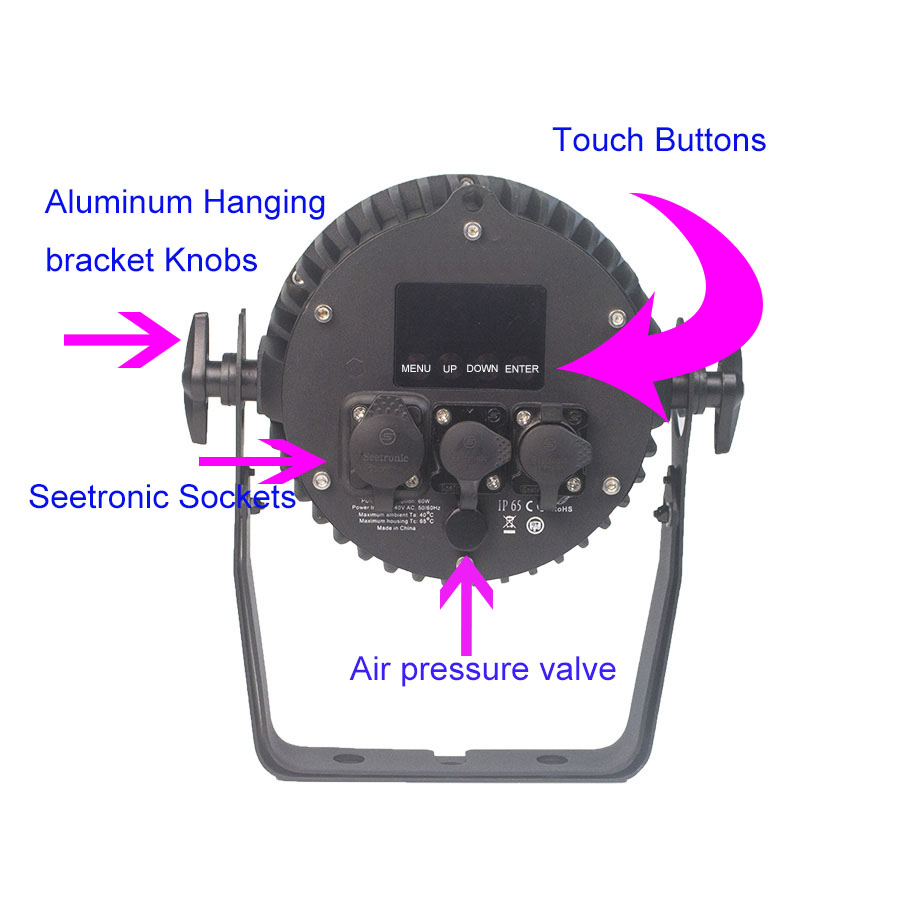

LCD display with 4 Touch buttons control panel
IP 65 3Pin or 5-pin DMX XLR connectors (waterproof)
IP 65 Seetronic VED/CE/UL approved POWERCON in/out connectors (Waterproof)
Light Source: 18 x 12W RGBWA+UV LED module
Exellent color mixing effect
Compact design, slim and ligh weight
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
IP65 protect rating.
Optical:
Light Source: 6X12W RGBWA+UV 6-in-1 LED
Life expectancy: Rated at 30,000 hrs.
Light Number: 6 PCS
Beam angle: 15°, 25°, 45° optional
Luminous Flux: 1250lm
PWM frequency: 800Hz, 2K Hz, 4KHz, 10K Hz, 20KHz, 25K Hz (Selectable on control panel)
Dimmer: Electronic Dimming: 0 - 100%
Dimmer Curves: 1 linear dimming + 3 dimming curves (Square Curve, Anti-Square Curve and S-Curve)
Flicker Free: Yes, Good for HD Vedio, Camera, TV studio, Theatre, Stage … and so on
Connection:
DMX: IP65 waterproof 3-pin or 5-pin DMX XLR In/Out
Power: IP65 PowerCON True1 In/Out to power daisy chain fixture
Control:
Control protocol: DMX-512
DMX Channels: 12 / 8 / 6 / HSV / HSI channels (5 channel modes)
Stand Alone: Built-in Auto Programs, Master/Slave, Custom Colors Mixing Setup, Preset Solid Colors
Control Panel Display 0802 LC Display (user-friend readable) with 4-buttons
Key Lock Yes
Electrical:
Power Draw Total: 60W (All LED's @ Full On)
Multi-voltage operation: AC 100-240V, 50/60Hz (Power supply with electronic auto-ranging)
Daisy chain: 10 fixtures (120V); 20 fixtures (230V)
Cooling: Smart cooling system thermal sensor, No fan
Construction / Physical:
Materials: Aluminum die-cast housing, black
Dimensions (LxWxH): 215 x 215 x 110mm
Weight: 3 kg.
Protection Rating: IP65
