18X12W RGBWA+UV 6-in-1 LED Slim Par Light with Powercon (China factory)
This Hexa LED par light made of aluminum diecast housing, Slim, lightweight for easy installation and transportation.
Great for quiet performance, silent operation, no moving parts inside.
Flicker free, suitable for use on camera, video, movie, TV studio and so on
Built-in non-linear dimming modes offers super-smooth LED fading
OEM/ODM welcome, your brand name logo allow to print on the units and packing even small order
The TourPAR Hex18, using 18 pcs 12W RGBWA+UV 6-in-1 LED, combines powerful output and colorful wash into its slim body. The par is featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & switching, to create psychedelic effect. Very suitable for bars, ball rooms, night clubs, TV studio, Threatre and other entertainment applications.
Product Name: 18x12W RGBWA+UV LED Slim Par Light For Professional Stage Lighting
Model TOURPAR Hex18
FEATURES:

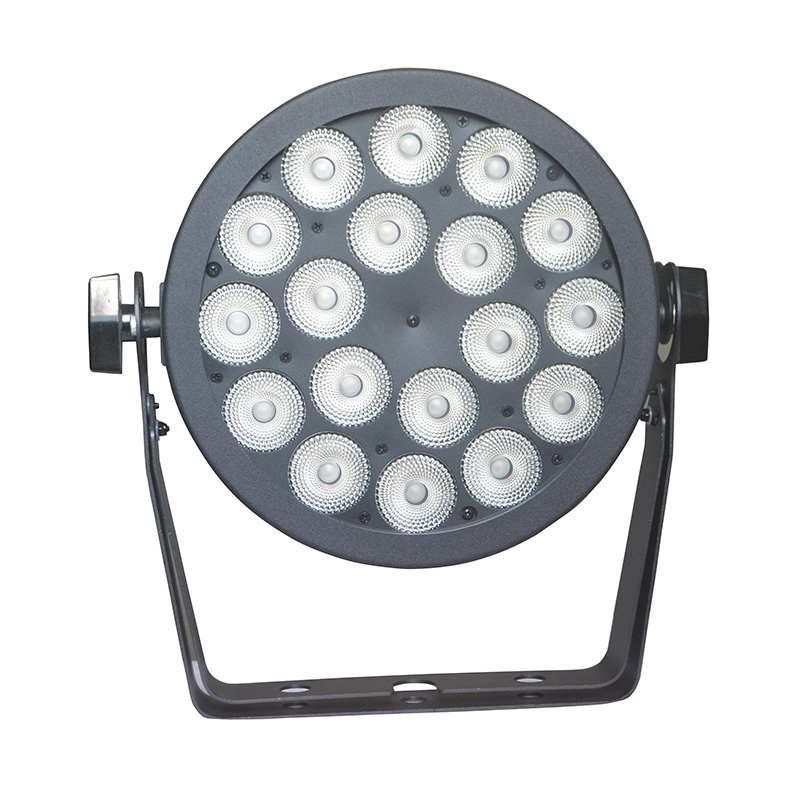

Light Source: 18 x 12W RGBWA+UV LED module
Exellent color mixing effect
Compact design, slim and ligh weight
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Key Lock function
Technical Specification:
Optical:

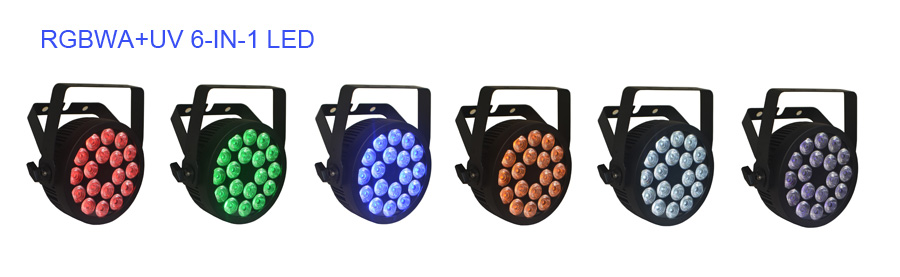

Light Source: 18X12W RGBWA+UV 6-in-1 LED
Life expectancy: Rated at 30,000 hrs.
Light Number: 18 PCS
Beam angle: 15°, 25°, 45° optional
Luminous Flux： 3250lm
PWM frequency: 800Hz, 2K Hz, 4KHz, 10K Hz, 20KHz, 25K Hz (Selectable on control panel)
Dimmer: Electronic Dimming: 0 - 100%
Dimmer Curves: 1 linear dimming + 3 dimming curves (Square Curve, Anti-Square Curve and S-Curve)
Flicker Free: Yes, Good for HD Vedio, Camera, TV studio, Theatre, Stage … and so on
Connection:

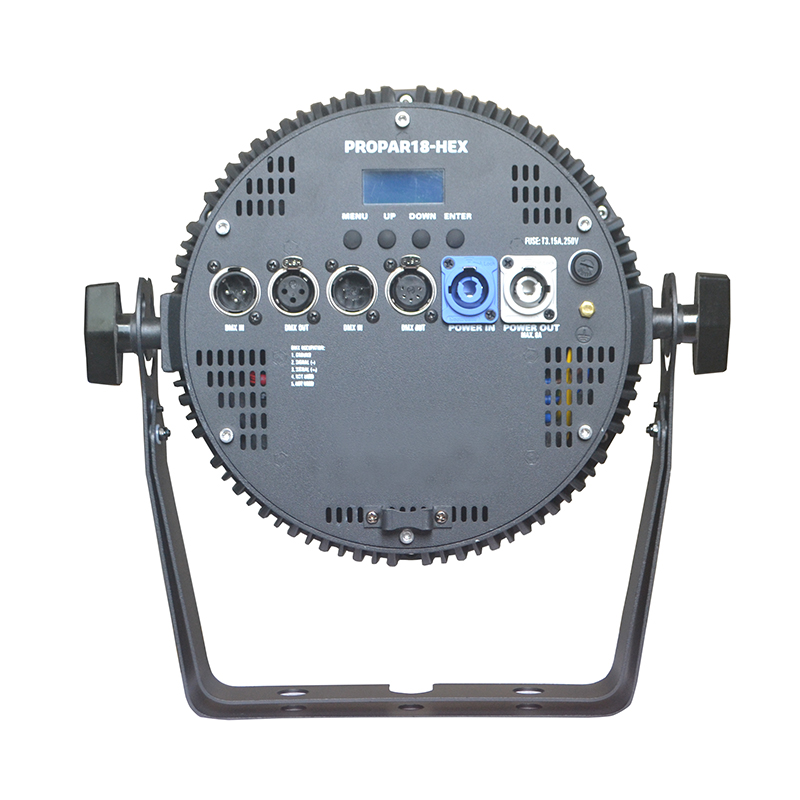

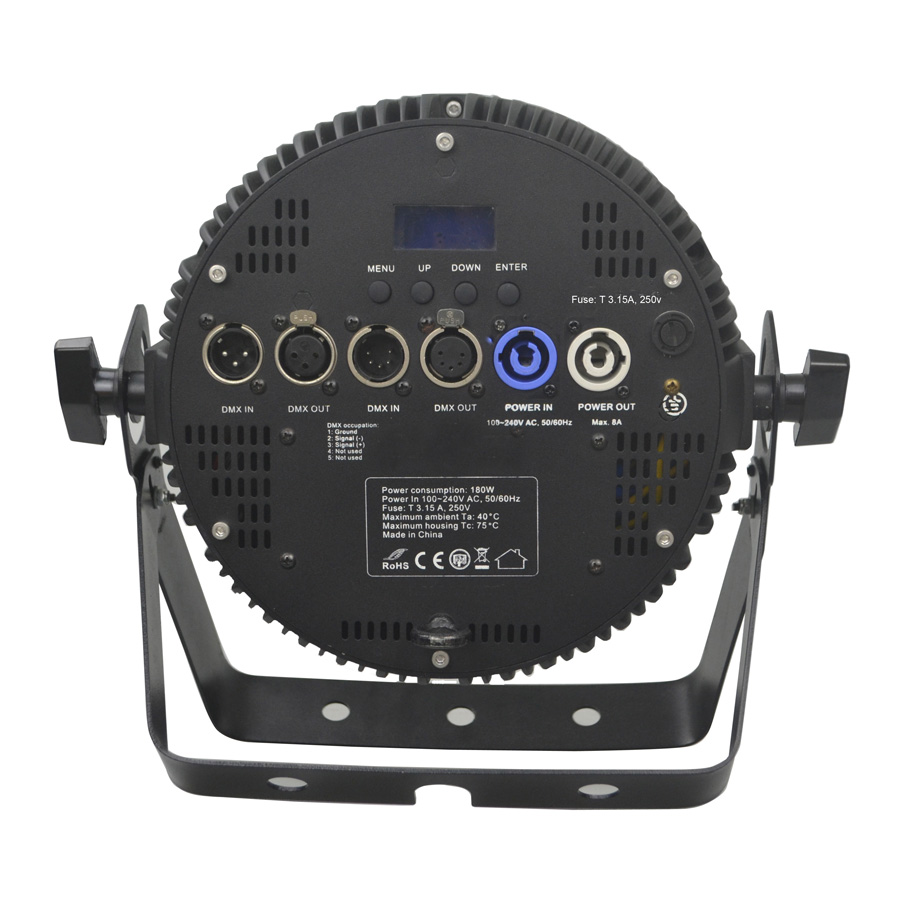

DMX: 3-pin + 5-pin DMX XLR In/Out

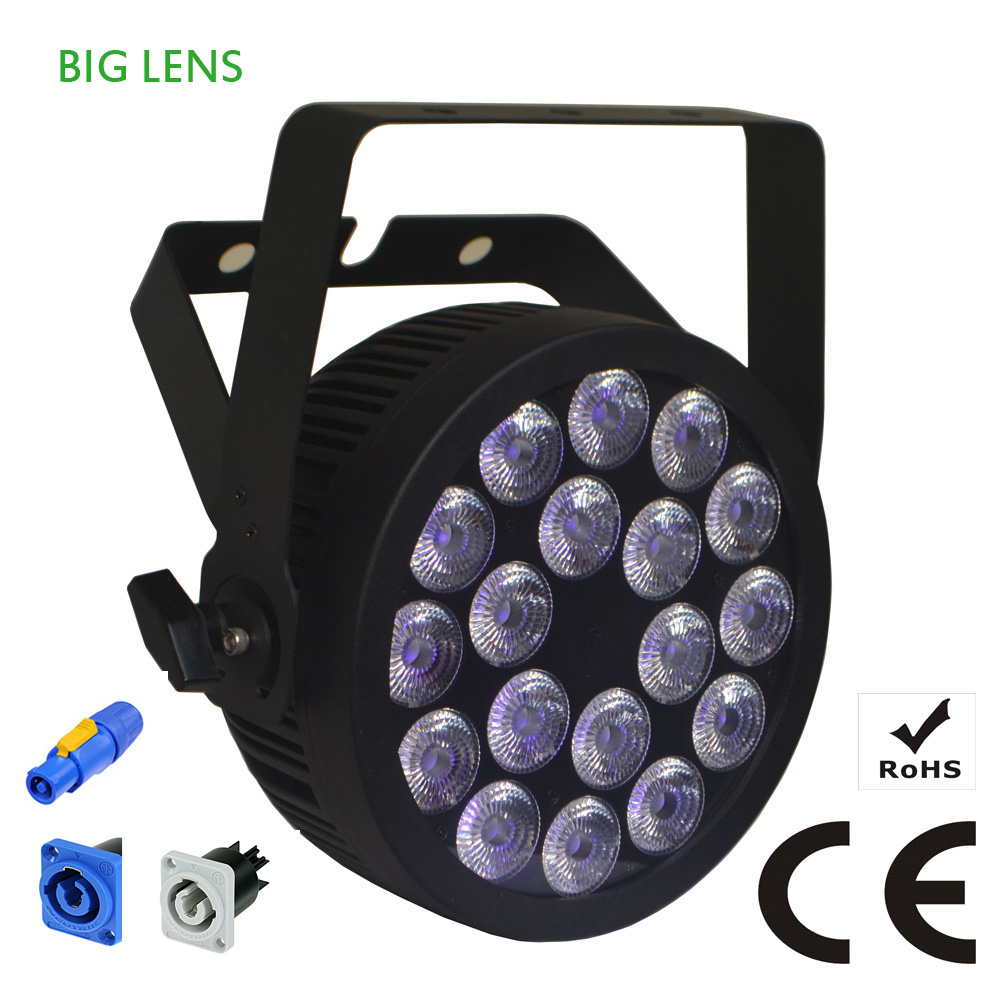

Power: PowerCON In/Out to power daisy chain fixture
Control:
Control protocol: DMX-512
DMX Channels: 12 / 8 / 6 / HSV / HSI channels (5 channel modes)
Stand Alone: Built-in Auto Programs, Master/Slave, Custom Colors Mixing Setup, Preset Solid Colors
Control Panel Display 0802 LC Display (user-friend readable) with 4-buttons
Key Lock Yes
Electrical:
Power Draw Total: 160W (All LED's @ Full On)
Multi-voltage operation: AC 100-240V, 50/60Hz (Power supply with electronic auto-ranging)
Daisy chain: 6 fixtures (120V); 12 fixtures (230V)
Cooling: Smart cooling system thermal sensor, No fan
Construction / Physical:
Materials: Aluminum die-cast housing, black
Dimensions (LxWxH): 310 x 310 x 110mm
Weight: 5.5 kg.
Protection Rating: IP22
